Designing for Small Spaces

A bistable latching solenoid was designed to lock and unlock individual server trays in the server cabinet.

客户问题

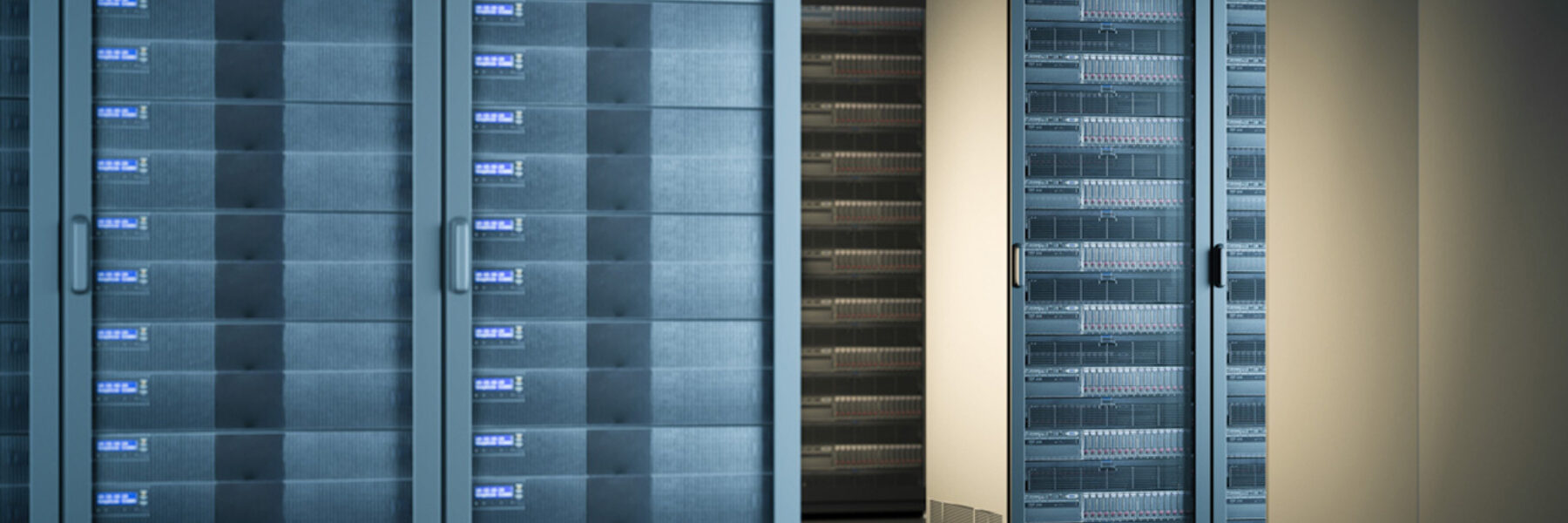

A producer of modular computing servers needed a means of ensuring that technicians could physically identify which specific server needed maintenance. A given installation could involve hundreds or even thousands of individual servers. With so many servers in any single installation, it was possible that a technician may inadvertently remove and service the wrong server. A device was needed that would lock the individual server trays in the cabinet and unlock only the trays holding the faulty servers.

TLX 解决方案

TLX Technologies developed a bistable latching solenoid that could be mounted in the small amount of space available in the server cabinet. The steel server tray was used as part of the magnetic circuit to help keep the solenoid as small as possible. Latching technology was utilized so that only a short pulse of current was needed to unlock or relock the server tray, minimizing power consumption and heat generation.

查看设计方案

Bistable Latching Solenoid

Stroke: 5 mm ± .20 mm

Supply voltage: 12 Vdc

Coil resistance at 20°C: 8.0 Ω

Operating temperature range: 15°C to 45°C (59°F to 113°F)

Duty cycle: 10% max.

TLX提供的任何组件，均可根据客户的不同系统、技术参数等要求进行设计和定制。本网站上的示例仅供说明目的。

Working with TLX

Experienced partner of industry leaders, first-tier suppliers, and OEMs
Direct access to our design and engineering team
Localized production in USA and China
Dependable single-source solution from design to delivery
